PtPS Wildfire Demo

Making it easier to work with rescued data

A networked data infrastructure demo for the “Investing in Open Infra to Safeguard Critical Scientific Data” project, part of the Portfolio to Protect Science (PtPS).

What’s here

Browser extension

Dataset rescue statuses

Risk calculation

Wildfire overlap

Detailed firefighter map

Simplified firefighter map

• Fallbacks: tools for finding a backup when a source URL goes away.
  • HTTP proxy
  • Python package

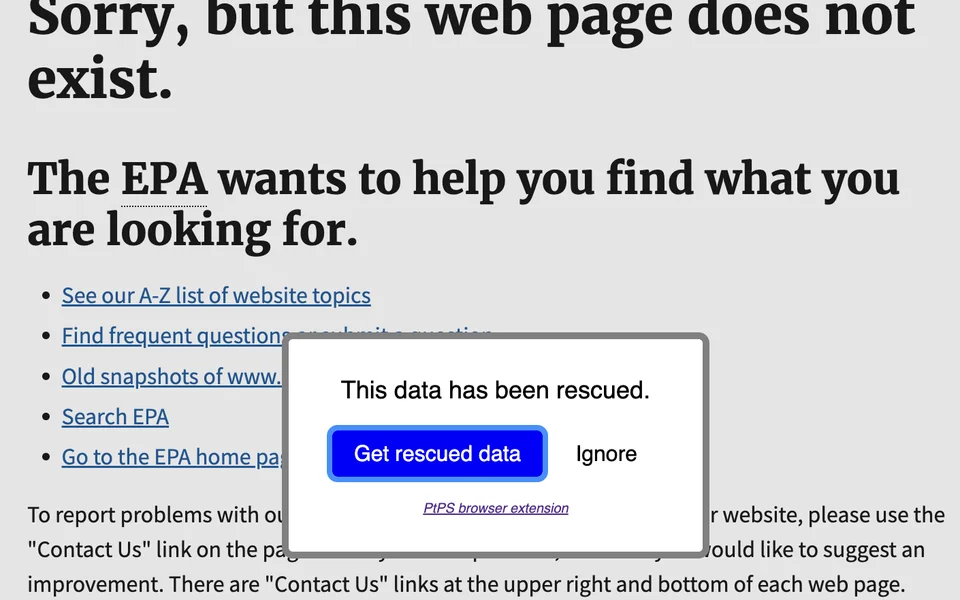

  • Browser extension
• Analysis

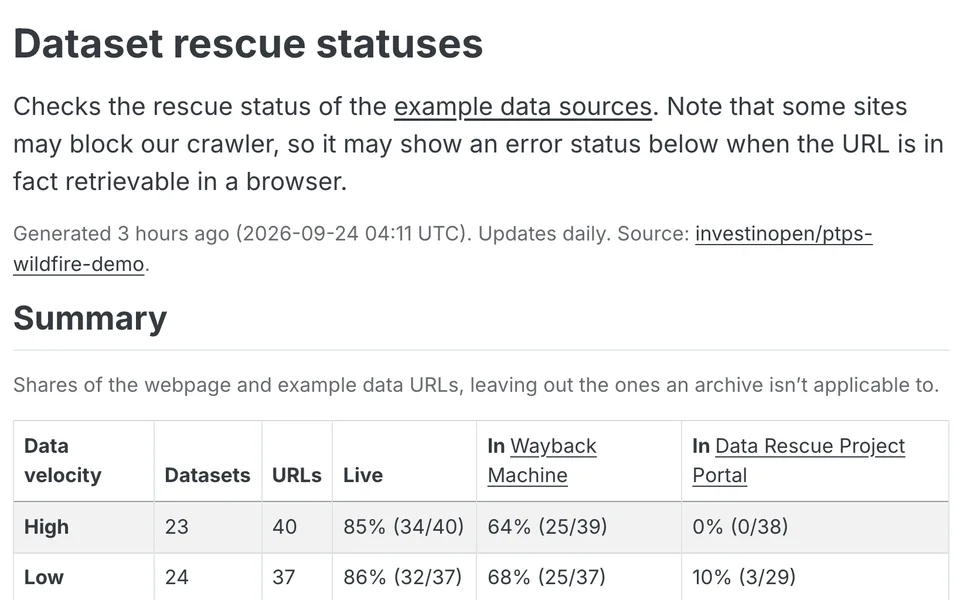

  • Dataset rescue statuses: checks whether the example wildfire data sources are still up, and whether they’ve been rescued to the Wayback Machine or the Data Rescue Project Portal. Updates daily.

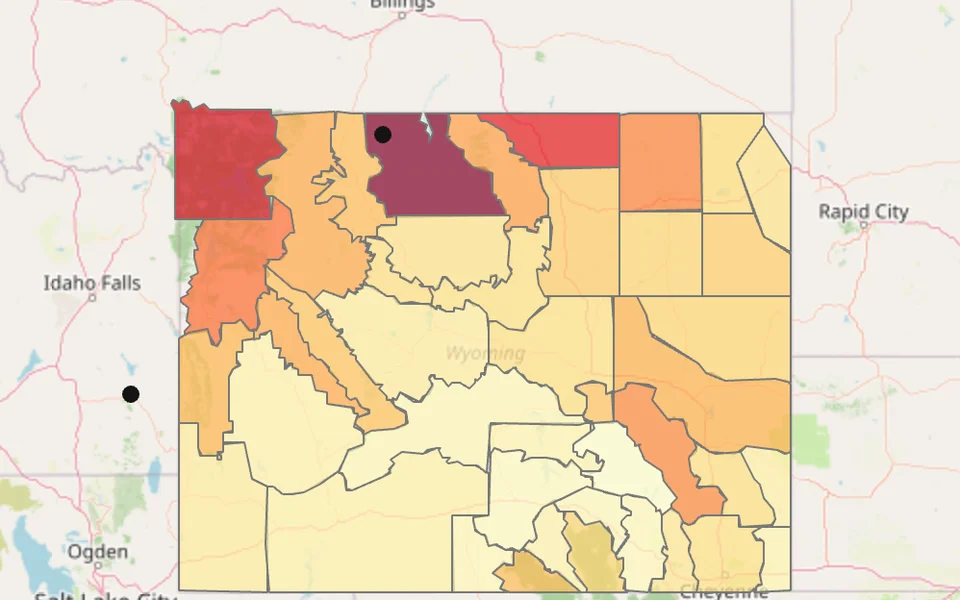

  • Risk calculation: ranks a state’s fire weather zones by combining burn probability, burn history, Red Flag Warnings, and active fire detections.

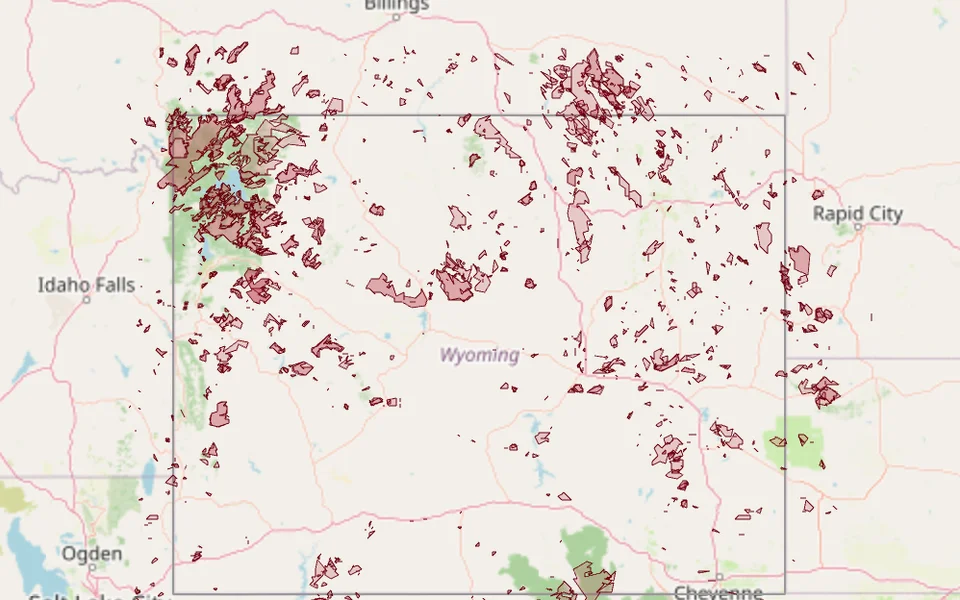

  • Wildfire overlap: maps every fire perimeter in a state since 1984, so places that have burned more than once stand out.
• Firefighter maps: printable maps for small/rural fire departments.

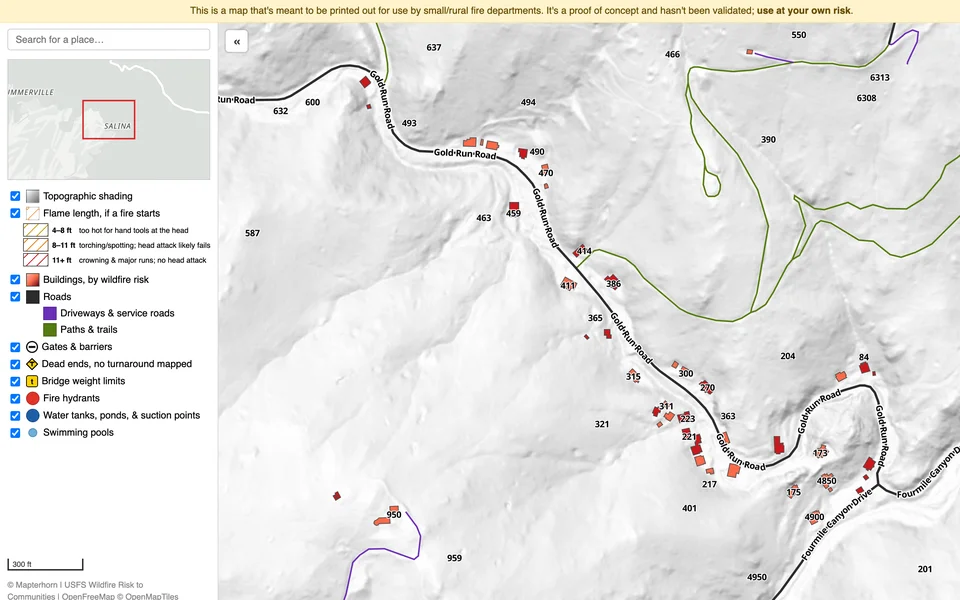

  • Detailed: combines building footprints, fuel load, burn probability, fire hydrants, roads, driveways, and trails.

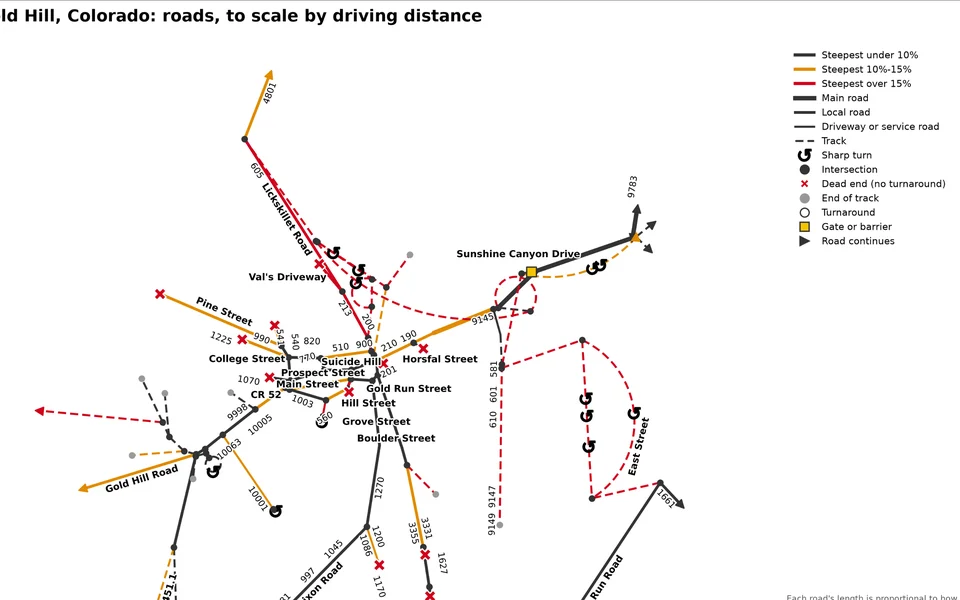

  • Simplified: draws the roads as a graph, to scale by driving distance, with steep grades, sharp turns, dead ends, and house numbers marked.

For progress over time, see the changelog.

Background

We are losing critical scientific knowledge every day. Urgent and increasing threats from funding cuts and policy changes impact the core datasets relied on globally for climate forecasting, public health, research, and scientific discovery.

To date, efforts to stop this loss have been primarily oriented toward rescue and preservation activities: saving bytes, archiving repositories, and migrating at-risk content to academic and non-profit storage environments and/or to commercial cloud providers. These crucial, often grassroots, efforts have been challenged by existing inefficiencies, fragmentation, and siloing across disconnected repositories and services. They may also inadvertently reinforce these problems by addressing immediate data loss, but not providing an alternate scenario for promoting long-term access continuity.

What is almost entirely absent in the projects and initiatives we are tracking is investment in the technical infrastructure layer: the tools, pipelines, standards, systems, and people that make any of the other work durable.

The project will design, build, and document a working end-to-end data infrastructure proof of concept organized around a specific use case: wildfire and disaster identification, prevention, and response. We have selected a fire and disaster relief scenario as our anchor case because it requires data across multiple disciplines including weather, GIS, health markers, environment and more, demonstrating the cross-domain assembly problem while connecting to urgent societal stakes that make visceral the “what happens if this goes dark” argument.

Output

Data rescue/resilience has, for the most part, focused on a single aspect of the problem: Take data from a source location, make a copy elsewhere. There are various angles that are less explored:

• If someone is looking for a dataset that’s been disrupted, how do they find the (appropriate) backup?
  • This is where the fallbacks come in.
    • HTTP proxy
    • Python package
    • Browser extension
• If someone’s using backed-up data, how do they verify its integrity (relative to the source)?
  • This is where varve comes in.
• What datasets have people not thought to back up yet? How do we avoid losing them?
  • This is what the data crawling / passive archiving is about.
• Instead of just making a copy of messy data, can we improve the quality/usability?
  • Cleaning
  • Merging
  • This is what Catalyst Cooperative is doing.
• Most solutions assume a high-speed internet connection on a modern device. How can we make relevant data available to those who (urgently) need it but don’t have internet or power?
  • Disaster scenarios
  • Remote areas
  • This is what the maps for firefighters is about.
• What data would be useful to operational folks but is too hard for them to access/use?
  • Example: Fire risk data requires using code / GIS software.
  • This is also what the maps for firefighters is about.

Design decisions

• Focus on low-velocity/historical data rather than high-velocity/real-time
• Focusing on mirrors (direct copies), rather than fabricating new datasets / creating alternatives
• Focused on ensuring there are greater than zero copies of datasets
  • Greater than one is a nice-to-have.
  • In other words, we’re focused on avoiding data disruption crises rather than long-term preservation.
• Presenting rescued/identical data as-is rather than doing any cleaning
• Shouldn’t be reliant on specific cloud providers
• While this is being built as a compatibility layer (behind the scenes), we will surface source dataset status and fallbacks to make it easier for people to understand.

We acknowledge that those other areas are valuable, they just aren’t in scope for this (phase of the) project.

See also

• On building for the long run, not just the crisis
• The Data Resilience Funding Landscape: A Preliminary Analysis
• Protype app from @jring-o
• varve “dataset archiving service”
• Binoc: “The missing changelog for datasets.”
